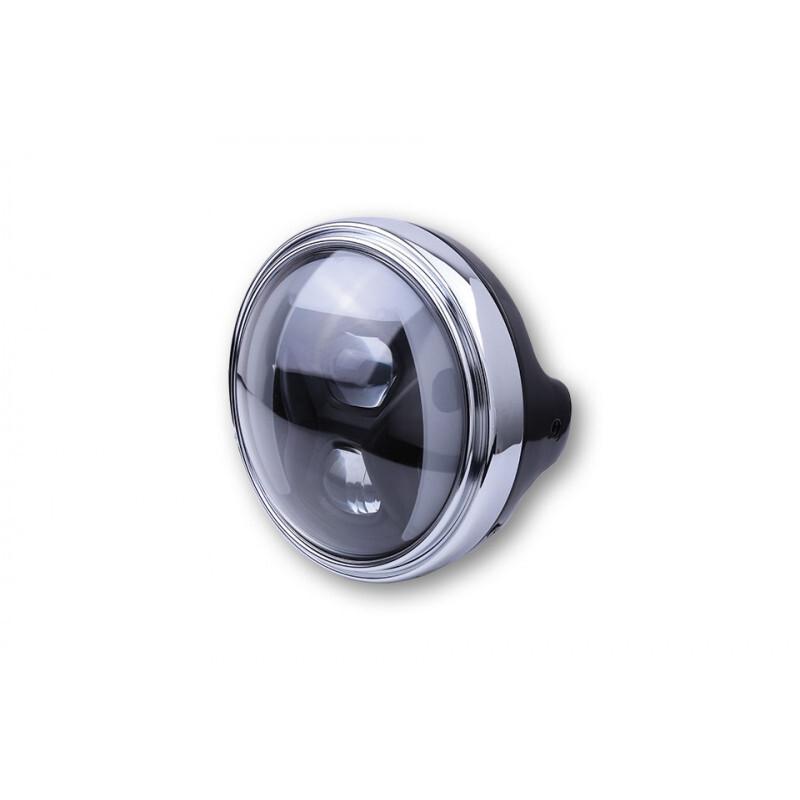

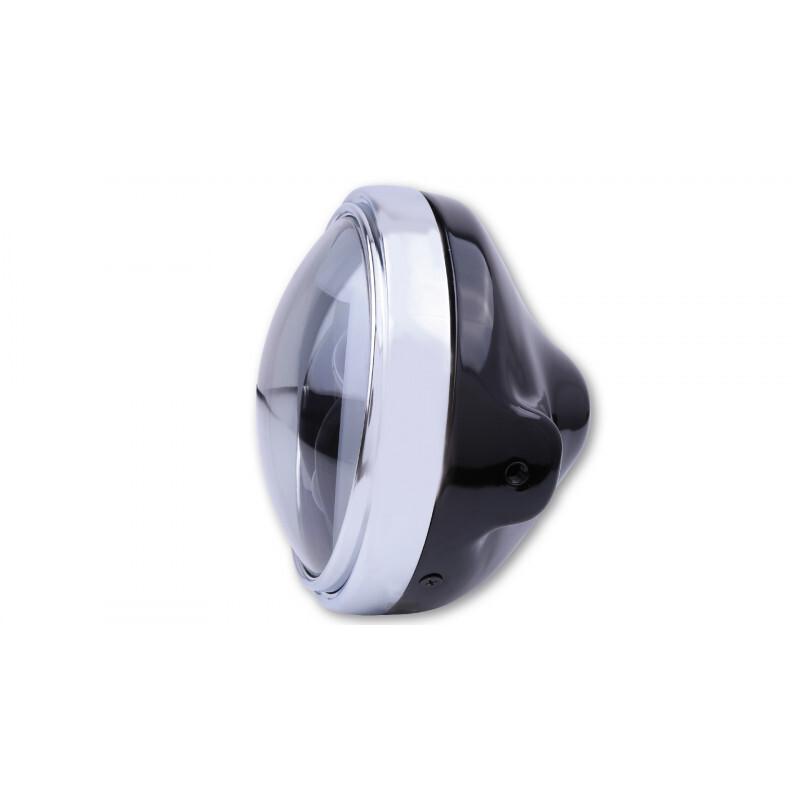

Led headlight LTD Typ 8 Directionel 7"

- See and be seen! - For motorcyclists of paramount importance.

The LED daytime running light installed with TYPE 8 position light is the ideal way to improve visibility during the day.

Thanks to modern LED lighting technology, enormous progress has been made in the field of headlamps. An LED bend lighting headlamp for motorcycle retrofitting heralds the next stage in the evolution of vehicle lighting. The HIGHSIDER LED headlamp with bend lighting offers clear advantages over conventional headlamps. Static bend lighting activates additional illumination when the motorcycle is leaning into a bend. Thanks to the improved lighting, you can see more of the curve and what's behind it. The rider can better adapt to conditions and situations, and is safer on the road. Two ellipsoidal lenses in combination with powerful LEDs turn night into day, combining a strong plus in safety with a unique polarizing look. The headlamp is protected by a high-quality metal housing and is available in black with tinted glass or chrome with clear glass. Of course, the HIGHSIDER LED headlamp with daytime running light, position light and cornering light is E-approved.

To switch from daytime running light to low beam:
Briefly press the high beam/low beam button (approx. 1 second) and release as soon as the low beam is activated. The low beam is then permanently active.

Superb - give your bike your unmistakable style! The unusual design and perfect technology of the HIGHSIDER headlight series will make you a point highlight!

Dimensions:
Diameter (at the same time hole spacing): 200 mm
Depth: 120 mm
Distance mounting holes - housing end: 75 mm
Headlight insert Ø: 178 mm

Mounting:
Side M8 x 1.25

Connections:
Power supply : 3-pin connector
Red wire = low beam (+)
White wire = high beam (+)
Black wire = ground (-)
Separate wire (round connector):
Red wire = LED position light (+)

Scope of delivery: 1 piece

Notes:
The resistor supplied is designed for the R nineT (2014), but may also be suitable forautres vehicle models.
Thanks to this resistor, the parking light error message is avoided.
