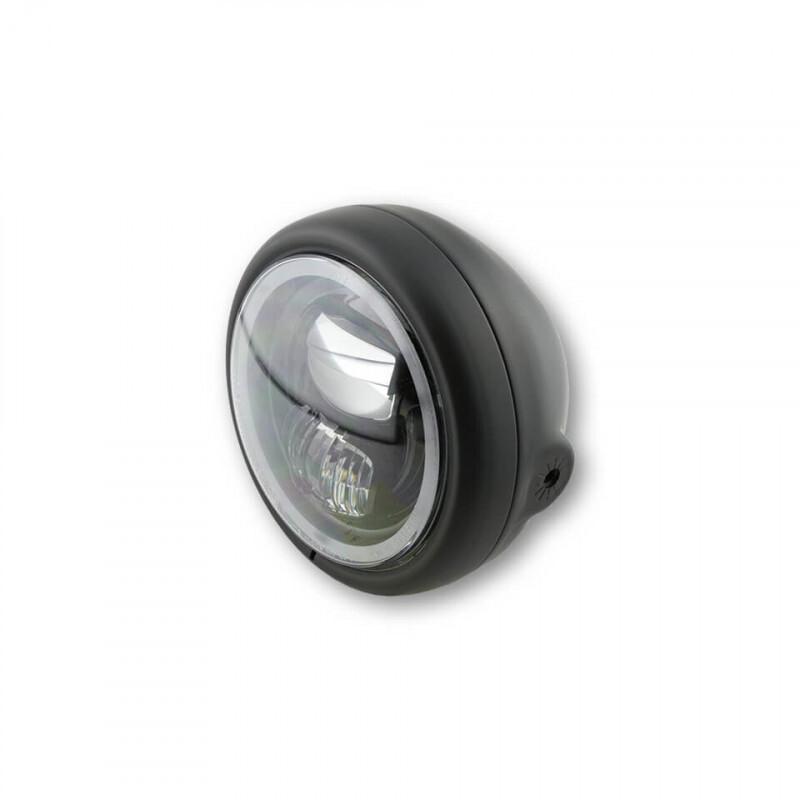

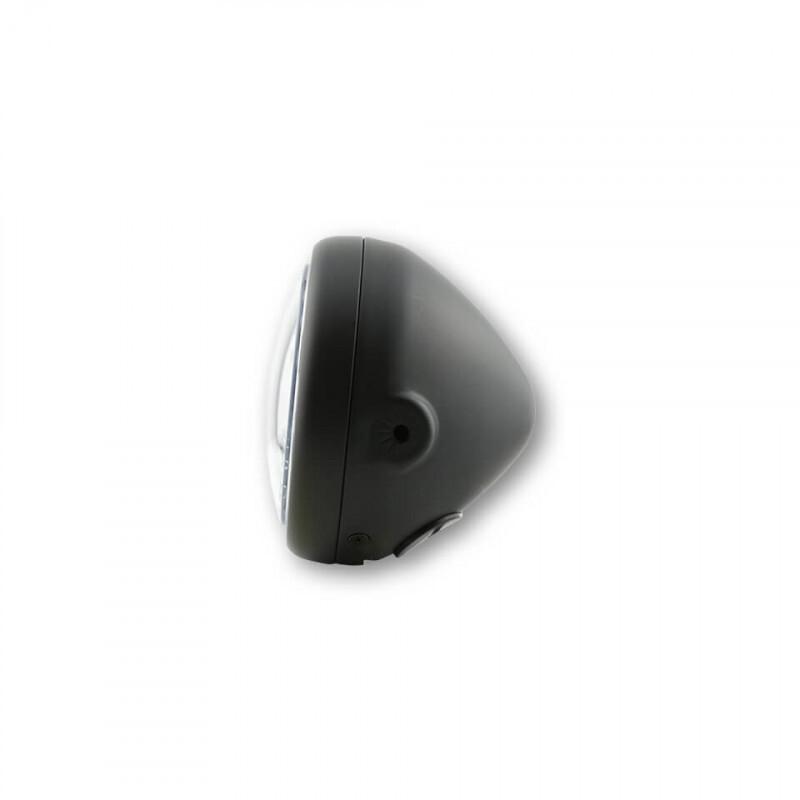

Led headlight Pecos Typ 7

5 3/4″ LED headlight PECOS TYP 7 with position light ring, matte black, side-mounted, CE-approved. Headlight dimensions: Diameter:145 mm Depth: 95 mm (from mounting screw to rear housing)Depth: 135 mm

HIGHSIDER

LED headlight HIGHSIDER 5 3/4 inch PECOS TYPE 7 with position light ring, black, CE approved.
Sleek main headlight with matt black metal housing and side mounting points. The PECOS TYPE 7 features state-of-the-art lighting technology and an extraordinary lighting design. The special feature of this LED headlamp with light ring is its dark appearance thanks to matte black and the discreet black reflector. In the upper part of the headlamp, the low beam is switched on, and when the high beam is switched on, both zones are illuminated.

Our highlights -Give your motorcycle a distinctive style!
The unusual design and perfect technology of the HIGHSIDER headlight series make it a strong point in any case!

Properties:
-Light source: LED
- Glass: transparent
- Black reflector with light ring
- Point mounting: on side with M6 thread

Dimensions:
Housing diameter: 165 mm
Depth: 135 mm
Distance to attachment points: approx. 160 mm

Connections:
Power consumption: 3-pin connector
White = Low beam (+)
Red = High beam (+)
Black = Earth (-)
Green = Position light (+)

Blue = Position light (+)

Supplied: 1piece
