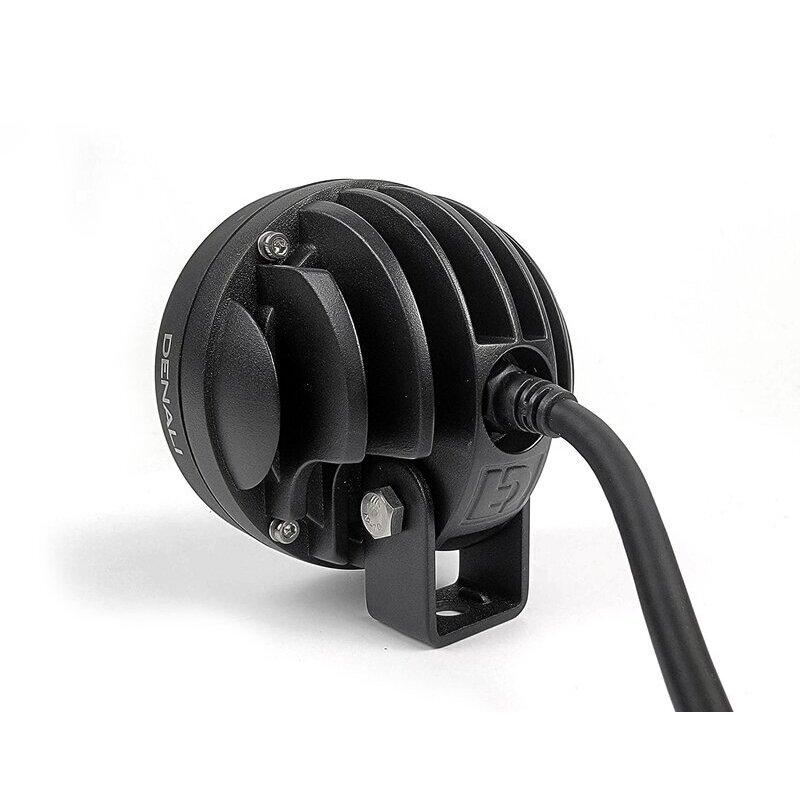

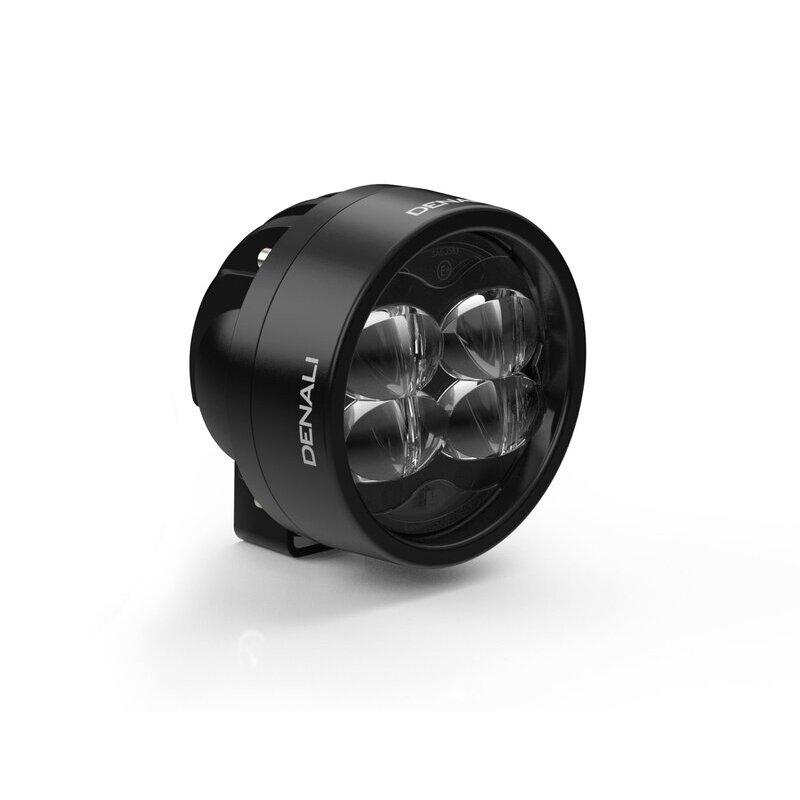

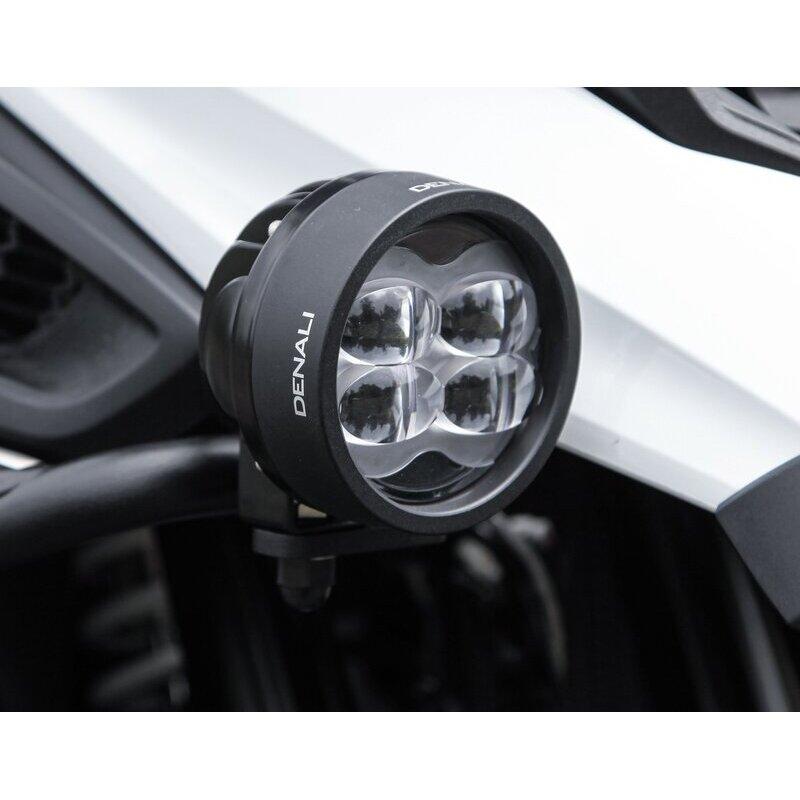

Motorcycle lighting D3 fog

The new D3 LED lights are built on a decade of innovation DENALI to deliver the most powerful fog lights on the market. The fog lights have been meticulously designed to achieve the maximum beam distance allowed for each lighting zone for SAE/DOT North American regulations and ECE of the European Union! The result is a truly unique lens that performs as good as it looks, capable of generating a fog beam 137 feet long by 91 meters wide at 1 lux (per pair)! No other road-legal fog light comes close!

The D3 is also available with the TriOptic™ beam system, which offers both spot and hybrid options (in the same kit) for riders who want uncompromised light output when you need it most.

Features

• Best-in-class fog beam (certified SAE/DOT and ECE)
• High-intensity Cree LEDs producing 2800 lumens per module.
• DataDim™ smart dimming technology with 3 wires (compatible with all DENALI dimming controllers)
• Submersible DrySeal™ waterproof light that can withstand the most extreme environments.
• Impact PC™ polycarbonate collars that won’t crack, fade, or corrode like traditional aluminum collars.
• LiveActive™ thermal management keeps the LEDs cool, preventing light output loss due to overheating.
• Discreet mounting bracket with stainless steel hardware included
• Selective amber and yellow lenses available (sold separately)

Beam performance (pair)

• Beam distance (at 1 lux): 137 meters (450 feet)
• Beam width (at 1 lux): 91 meters (300 feet)

Specifications (single pod)

• Pod size: 90 mm diameter x 76 mm depth
• LED: (4x) 11-watt Cree XP-P LEDs
• Power drawn: 40 watts (3.3 amps)
• Lumens: 2800
• DataDim™ compatible: Yes
• Operating voltage: 9-32V DC
• Waterproof and submersible IP67
• Anti-fog lens certifications: SAE/DOT J583 & ECE R19

Box contents

• (1x) D3 LED fog light pod
• (1x) Hinge brackets with M8 stainless steel hardware
• (1x) Pig tail cable
