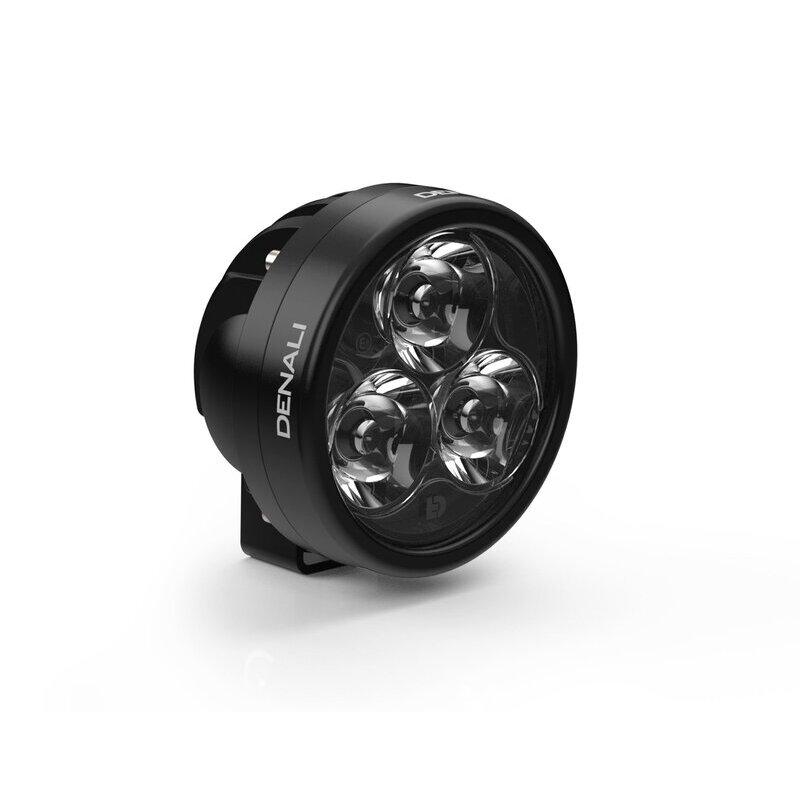

Motorcycle lighting D3 driving

The new D3 LED lights build on a decade of innovation DENALI to deliver the most powerful 36-watt lighting on the market. The D3 light features the signature TriOptic™ beam system, which includes a spot and hybrid driving lens with each pod. Unlike previous TriOptic™ lights, the D3's hybrid driving beam meets ECE and SAE standards, providing an impressive and legal beam in North America and EU countries. But what if you're not concerned about road legislation and just want an off-road beam? We've got you covered there too! The D3 spot lens is designed for a maximum beam distance of over 1900 feet at 1 lux (per pair). No other 36-watt lighting comes close. The spot beam is so impressive that it outshines the lights from leading competitors that are twice its size.

The D3 is also available in a SAE and ECE certified fog beam for drivers looking for a true approved fog light, very wide with a sharp horizontal cutoff.

Features

• TriOptic™ lens system (includes spot and hybrid lenses with each module)
• The best category-legal spot and hybrid beams (SAE/DOT and ECE certified)
• Cree high-intensity series LED producing 2100 lumens per module.
• DataDim™ smart dimming technology with 3 wires (compatible with all dimming controllers DENALI)
• DrySeal™ watertight submersible light that can withstand the most extreme environments.
• Impact PC™ polycarbonate collars that won't crack, fade or corrode like traditional aluminium collars.
• LiveActive™ thermal management keeps the LEDs cool, preventing loss of light output due to overheating.
• Discreet mounting bracket with stainless steel hardware included
• Additional hybrid driving lens certified SAE/DOT and ECE included (installed auxiliary lens).
• Amber and yellow lenses available (sold separately)

Beam Performance (pair)

• Spot beam
• Beam distance (at 1 lux): 1910 feet (582 metres)
• Beam width (at 1 lux): 30 metres (100 feet)

Combined beam (1 spot, 1 hybrid)

• Beam distance (at 1 lux): 463 metres (1520 feet)
• Beam width (at 1 lux): 53 metres (175 feet)

Hybrid beam

• Beam distance (at 1 lux): 320 metres (1050 feet)
• Beam width (at 1 lux): 69 metres (225 feet)

Specifications

• Round x 2.62 (66mm) deep
• LED: (3x) 11-watt Cree XP-P LEDs
• Power draw: 36 watts (3 amps)
• Lumens: 2100
• DataDim™ compatible: Yes
• Operating voltage: 9-32V DC
• IP67 rated for waterproofing and submersion
• Hybrid lens certifications: SAE/DOT J581 & ECE R112
• Spot lens certifications: ECE R112
