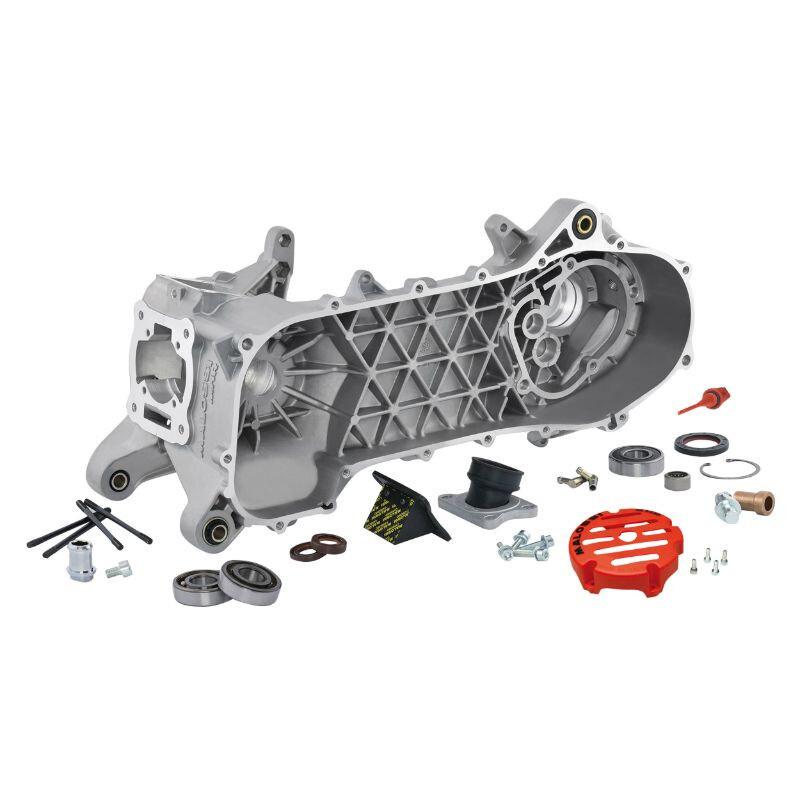

Motor housing Mhr C One Piaggio 2T 50cc complet

MHR CONE has been designed and engineered to :

• Fit both drum-brake and disc-brake solutions.
• Be fitted to replace the origine motor ( court or long model). The position of the shock absorber connection has been specially designed to accommodate both solutions.
• Use of the electric cooling pump to eliminate the power absorption of the traditional mechanical water pump.
• Eliminating the automatic mixer
• For installation of the vacuum pump essence
• The new large-size valve, designed using sophisticated 3D fluid dynamics simulation programs.
• Fit all current products Malossi.
• Technical features :
• Couple housing, die-cast in high-strength silicon aluminum alloy.
• Crankcases equipped with silent block 5.250kg
• Crankshaft and clutch shaft center distance 270mm
• Cylinder stud hole center distance 48x48
• Motor shaft bearing 20x47x14
• VL18 reed valve
• Pipe 360 DIAM 2128 Length 27 mm
• Liquid connection
• Wheel axle bearing 20x47x14
• Gear roller case dimensions 16x22x12

• Nom Du Produit : motor housing
• Product Model: mhr c-one
• Product subfamily: motor housings/pieces
• Product family: motors (motorized)
• Packaging : complete

Suitable for:

• 2T 50cc
